Toro-L Interbody Fusion System

FEATURE OVERVIEW

REDEFINING LATERAL

Toro-L is a biplanar-expandable lateral implant. Its minimal 14mm-wide insertion profile is designed to minimize the need for neural retraction and its innovative expansion mechanism allows the implant to expand to its full width of either 21 or 24mm before expanding to the surgeon’s desired height of up to 16mm within the disc space. By first expanding in width before seamlessly transitioning to lifting in height, Toro-L is designed to minimize endplate violation and subsidence.

ACCESS WITHOUT COMPROMISE

Toro-L features disc prep instrumentation that is designed to maintain the device’s minimal insertion profile while still allowing the surgeon to fully evacuate the disc space and accommodate the wide footprint of the implant.

Bilateral Articulating Thoracolumbar (BATL) cURETTE: INNOVATIVE ARTICULATING DISC REMOVAL TOOL

Unique and traditional curettes, scrapers and rasps

wide selection of kerrisons and pituitaries

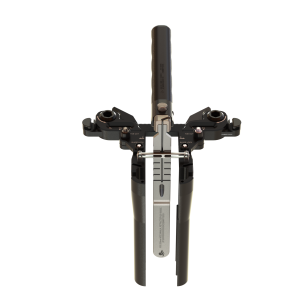

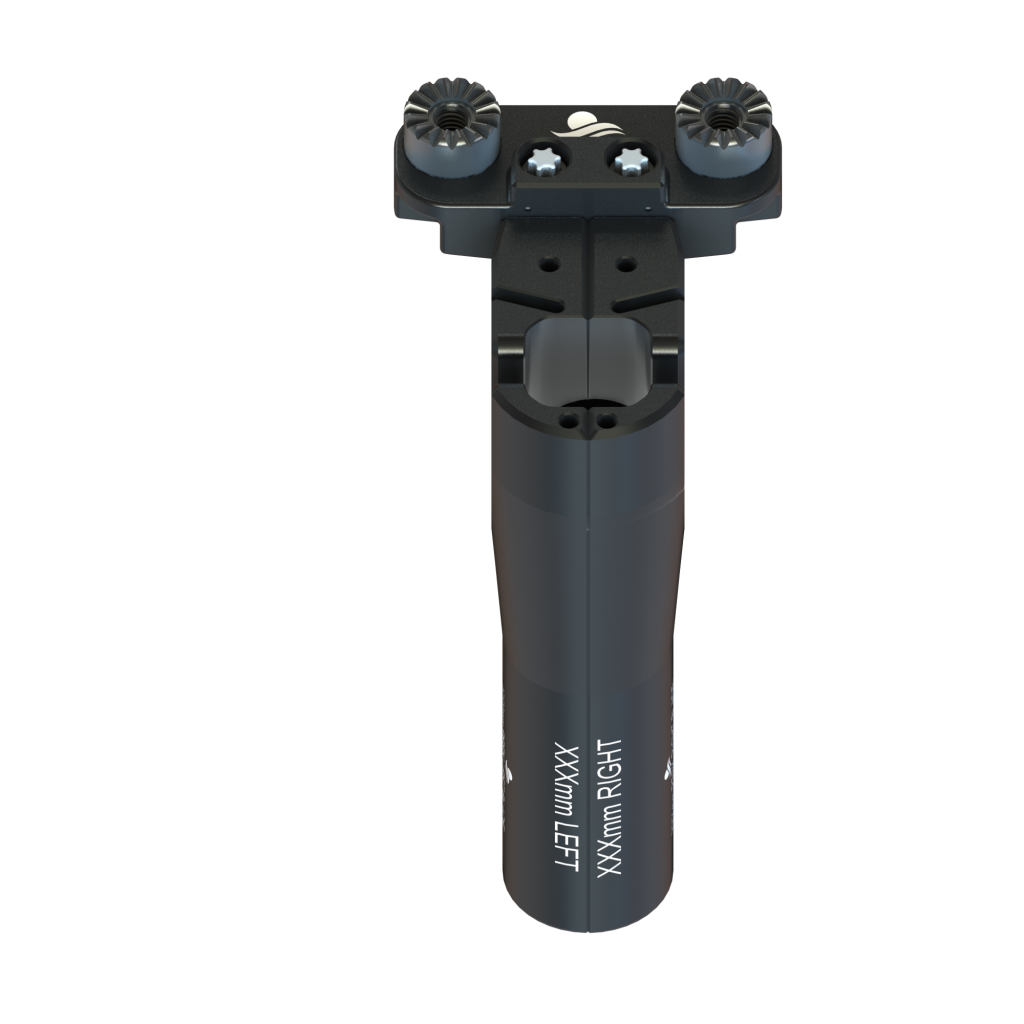

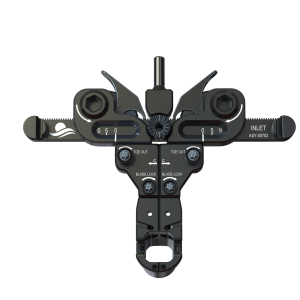

SOLID PORTAL FRAME AND SPLIT TUBE RETRACTOR OPTIONS

Insertion Profile:14mm (width) x 8-11mm (height) x 45-60mm (length)

MINIMAL Insertion profile

Insertion profile as small as 8x14mm is designed to minimize neural retraction.
Multiple insertion profile options to help accommodate patient- and level-specific neural corridors.

Expanded Profile:

21 or 24mm (width) x 8-13mm (5º height ranges), 10-15mm (10º height ranges),
and 11-16mm (15º height ranges) x 45-60mm (length)

expansive footprint

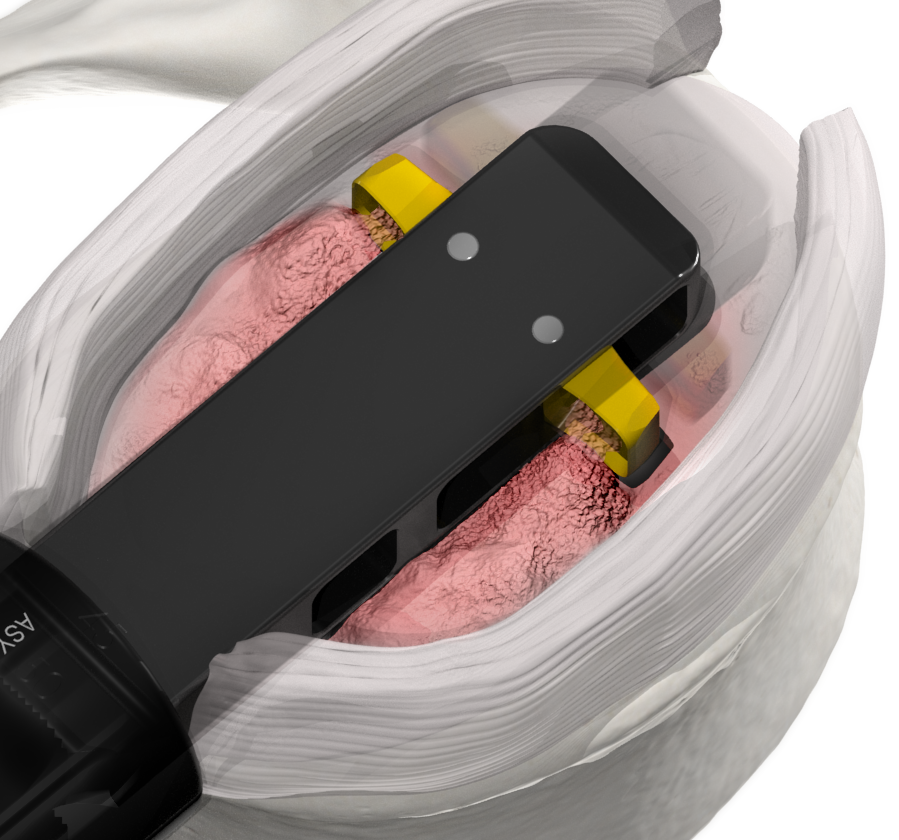

Upon insertion, the Toro-L implant expands to its full width, ensuring it will lift with the maximum footprint, before seamlessly transitioning into its height cycle.
Toro-L can be locked in place at the surgeon’s preferred implant height and amount of segmental distraction.

MAXIMUM GRAFT DELIVERY

The large graft delivery window and open-cage architecture allow for in- and through-filling with flowable bone graft.
Bone graft can be packed through the inserter, minimizing passes and steps for delivery.

Surface topography

Utilizing 3D-printed endplates, Toro-L’s additive manufacturing process creates a 5-10-micron RA surface where the implant interfaces with the bone.

INDICATIONS FOR USE/INTENDED USE

The Toro-L Interbody Fusion System is indicated for intervertebral body fusion of the spine in skeletally mature patients. The System is designed for use with autogenous and/or allogeneic bone graft comprised of cancellous and/or cortical cancellous bone graft to facilitate fusion and supplemental internal spinal fixation systems (e.g., pedicle screw/rod systems) cleared by the FDA for use in the thoracolumbar spine. The devices are to be used in patients who have had at least six months of non-operative treatment.

The Toro-L Interbody Fusion System is intended for use in interbody fusions in the thoracic spine from T1 to T12 and at the thoracolumbar junction (T12-L1), and is intended for use in the lumbar spine, from L1 to S1, for the treatment of symptomatic disc degeneration (DDD) or degenerative spondylolisthesis at one or two adjacent levels, including thoracic disc herniation (with myelopathy and/or radiculopathy with or without axial pain). DDD is defined as back pain of discogenic origin with degeneration of the disc confirmed by history and radiographic studies. The Toro-L Interbody Fusion System can be used as an adjunct to fusion in patients diagnosed with multilevel degenerative scoliosis.
